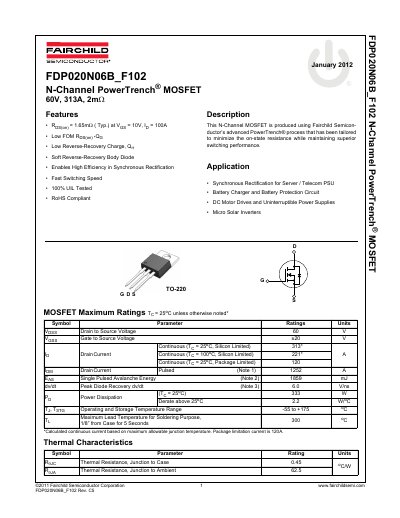

FAIRCHILD FDP020N06B_F102 handbook

This document describes the features and characteristics of FDP020N06B_F102 N-Channel PowerTrench® MOSFET, including low on-state resistance, low reverse-recovery charge, fast switching speed, etc. It is suitable for applications such as synchronous rectification, battery chargers, DC motor drives, etc.

Brand: Fairchild
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 9
File format: PDF
File size: 661 KB
Published: 11 July, 2012
Updated: 28 September, 2023
Model: F102
MD5 checksum: 01CD0682AAA4DF35D5C57FFEDE118ABF
PDF: FAIRCHILD FDP020N06B_F102 handbook PDF

About this manual

This document is a technical datasheet for the Fairchild Semiconductor FDPO20N06B_F102, an N-Channel PowerTrench® MOSFET. The device features low on-state resistance (Rds(on)) of 1.85mΩ typical and is optimized for high efficiency in synchronous rectification applications.

What's inside

Features
Application
Maximum Ratings
Thermal Characteristics
Electrical Characteristics
Typical Performance Characteristics

Specifications

Drain to Source Voltage	60 V
On-Resistance (Typical)	1.85mΩ
Operating Temperature Range	-55 to +175 °C
Package Type	TO-220 F102

Frequently asked questions

What are the main applications for this MOSFET?

It is suitable for synchronous rectification in server/telecom PSUs, battery chargers, DC motor drives, and micro solar inverters.

Is this device RoHS compliant?

Yes, the datasheet states that the product is RoHS Compliant.
