The FDP047N10 is a N-Channel PowerTrench® MOSFET produced by Fairchild Semiconductor Corporation, which has a low Rdson, a high switching speed, a low gate charge, a high power and current handling capability, and is RoHS compliant.

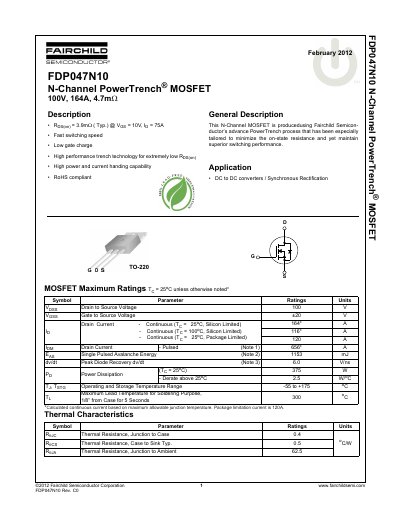

This document is a datasheet for the Fairchild FDP047N10, an N-Channel PowerTrench MOSFET designed for high power and current handling capabilities. The device features a 100V drain-to-source voltage rating, a continuous drain current of 164A, and a low on-state resistance of 4.7mΩ. It is optimized for applications such as DC to DC converters and synchronous rectification.
| Drain to Source Voltage | 100 V |
|---|---|
| Continuous Drain Current (Tc = 25°C) | 164 A |
| On-State Resistance | 4.7 mΩ |
| Operating Temperature Range | -55 to +175 °C |
| Package Type | TO-220 |
The maximum continuous drain current at 25°C is 164A.
Recommended applications include DC to DC converters and synchronous rectification.
