This product is a N-Channel PowerTrench MOSFET with low on-state resistance, fast switching speed and low gate charge.

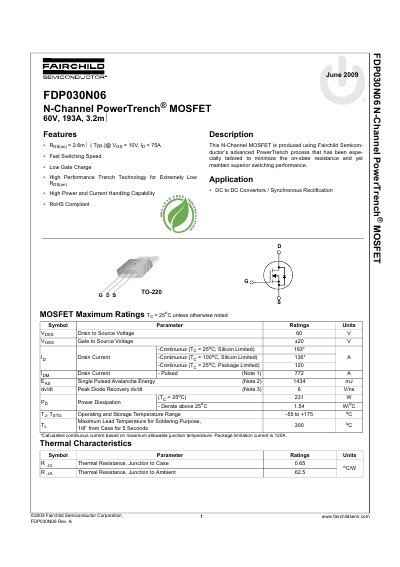

The document describes the Fairchild FDP030N06 N-Channel PowerTrench MOSFET, which is produced using advanced technology to minimize on-state resistance while maintaining superior switching performance. The device features a low typical drain-to-source on-resistance of 2.6mΩ and is designed for applications such as DC to DC converters and synchronous rectification.
| Drain to Source Voltage | 60 V |
|---|---|
| Continuous Drain Current (Tc=25°C) | 193 A |
| Typical On-Resistance | 2.6 mΩ |
| Package Type | TO-220 |
| Operating Temperature Range | -55 to +175 oC |
The typical drain-to-source on-resistance (R DS(on)) is 2.6mΩ at V GS = 10V and I D = 75A.
This MOSFET is suitable for DC to DC Converters and Synchronous Rectification.
Yes, the document states that the device is RoHS Compliant.
