FDMS86520L N-Channel PowerTrench® MOSFET is a low rDS(on) MOSFET introduced by Fairchild Semiconductor Corporation in 2011. The device is designed for DC/DC converters and comes in an MSL1 package with 100% UIL testing and RoHS compliance.

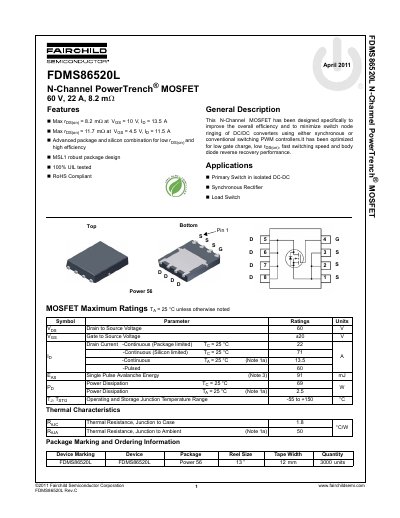

This document is a datasheet for the Fairchild Semiconductor FDMS86520L, an N-Channel PowerTrench MOSFET designed to improve efficiency and minimize switch node ringing in DC/DC converters. The device is optimized for low gate charge, low on-resistance, and fast switching speed, making it suitable for primary switches in isolated DC-DC converters, synchronous rectifiers, and load switches.
| Drain to Source Voltage | 60 V |
|---|---|
| Continuous Drain Current (Package limited) | 22 A |
| Continuous Drain Current (Silicon limited) | 7 A |
| Continuous Drain Current (Note 1a) | 13.5 A |
| Power Dissipation (Tc = 25°C) | 69 W |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance, Junction to Case | 18 °C/W |
| Thermal Resistance, Junction to Ambient | 50 °C/W |
Yes, the document states that the device is RoHS Compliant.
The maximum continuous drain current is 22 A when package limited at Tc = 25°C.
