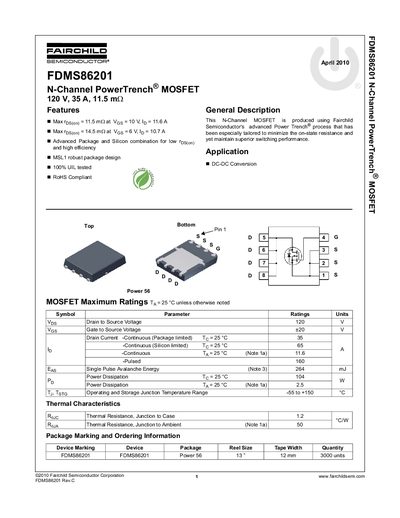

Fairchild Semiconductor FDMS86201 N-Channel MOSFET Datasheet

FDMS86201 N-Channel PowerTrench® MOSFET is a high performance, low-resistance MOSFET suitable for DC-DC conversion power applications.

Brand: Fairchild
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 7
File format: PDF
File size: 216 KB
Published: 11 July, 2012
Updated: 30 September, 2023
MD5 checksum: ED15AC1A2F5C144BCD118C401A07A5E1
PDF: Fairchild Semiconductor FDMS86201 N-Channel MOSFET Datasheet PDF

About this manual

This document is a datasheet for the Fairchild Semiconductor FDMS86201, an N-Channel PowerTrench MOSFET rated for 120 V, 35 A, and 11.5 mΩ. It utilizes an advanced package and silicon combination designed for low on-state resistance and high efficiency.

What's inside

General Description
Maximum Ratings
Electrical Characteristics
Thermal Characteristics
Typical Characteristics
Dimensional Outline
Package Marking

Specifications

Power Dissipation (Te = 25°C)	104 W

Frequently asked questions

What is the application for the FDMS86201?

The device is designed for DC-DC conversion applications.

Is the FDMS86201 RoHS compliant?

Yes, the device is RoHS Compliant.
