FDMS86540 is a N-Channel MOSFET produced by Fairchild Semiconductor Corporation. This device has the characteristics of low on-resistance, high efficiency, soft recovery, and is suitable for use in DC/DC converters.

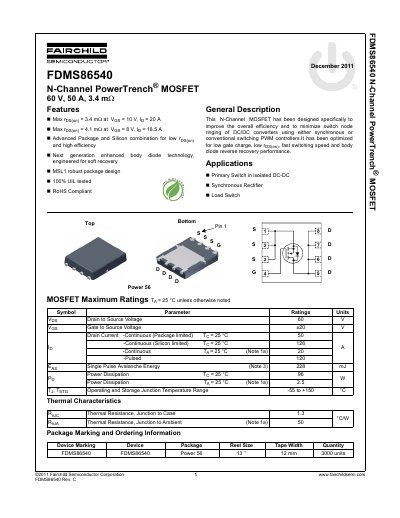

This document is a technical datasheet for the Fairchild Semiconductor FDMS86540, an N-Channel PowerTrench MOSFET. The device features a maximum drain-to-source voltage of 60V and continuous current ratings up to 50A (package limited) or 126A (silicon limited). It is designed for applications such as primary switches in isolated DC-DC converters, load switches, and synchronous rectifiers.
| Drain to Source Voltage (VDS) | 60 V |
|---|---|
| Continuous Drain Current (Package Limited) | 50 A |
| Continuous Drain Current (Silicon Limited) | 126 A |
| Power Dissipation (Ta = 25°C) | 96 W |
| Operating Junction Temperature Range | -55 to +150 °C |
The device supports a continuous drain current of 50 A when the case temperature is 25°C.
The device operates and stores within a junction temperature range of -55 to +150 °C.
The maximum power dissipation rating is 96 W when the case temperature is 25°C.
