The FDN327N is a N-channel MOSFET from Fairchild. It operates at 20V and has a rated current of 2A. The turn-on voltage is 1.8V. This device uses Fairchild's high voltage PowerTrench process and features low gate charge and fast switching speed.

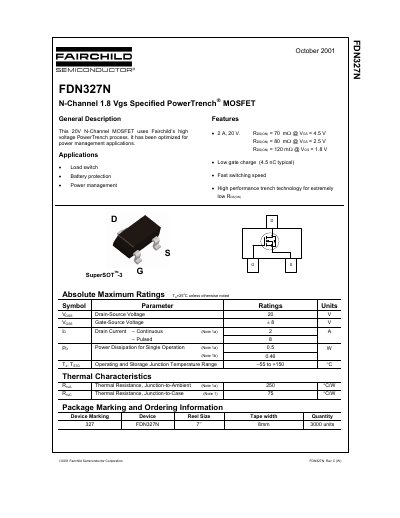

This document is a datasheet for the Fairchild Semiconductor FDN327N, an N-Channel MOSFET utilizing the PowerTrench process. It is designed for power management applications such as load switches and battery protection. Key features include a 20V drain-source voltage rating, a maximum continuous drain current of 2A, and a SuperSOT-3 package.
| Drain-Source Voltage | 20 V |
|---|---|
| Gate-Source Voltage | +8 V |
| Pulsed Drain Current | 8 A |
| Operating Junction Temperature Range | -55 to +150 °C |
The maximum continuous drain current is 2 A.
The device uses a SuperSOT-3 package.
