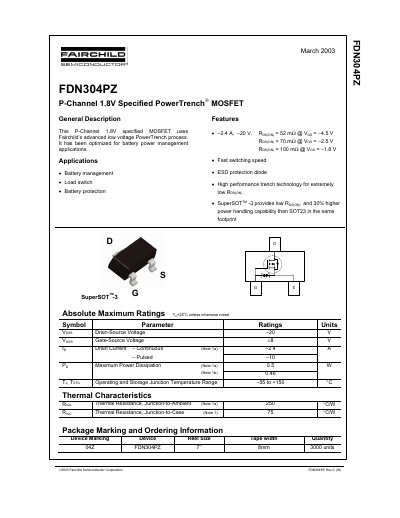

This document describes a P-channel 1.8V specified MOSFET that uses Fairchild's advanced low voltage PowerTrench process. It is optimized for battery power management applications.
The document describes the Fairchild FDN304PZ, a P-Channel MOSFET utilizing advanced low voltage PowerTrench technology. It is specifically optimized for battery power management applications such as load switches and battery protection circuits.
Key features include fast switching speed, built-in ESD protection diode, and high-performance trench technology designed to achieve extremely low on-resistance. The device utilizes the SuperSOT-3 package, which offers improved power handling capability compared to standard SOT23 packages.
| Drain-Source Voltage (Vdss) | -20 V |
|---|---|
| Gate-Source Voltage (Vgss) | +8 V |
| Operating Junction Temperature Range | -55 to +150 °C |
| Package Type | SuperSOT-3 |
The device is optimized for battery power management applications, specifically serving as a load switch or for battery protection.
The maximum continuous drain current rating is 2.4 A at Ta=25°C.
Yes, the FDN304PZ features an integrated ESD protection diode.
