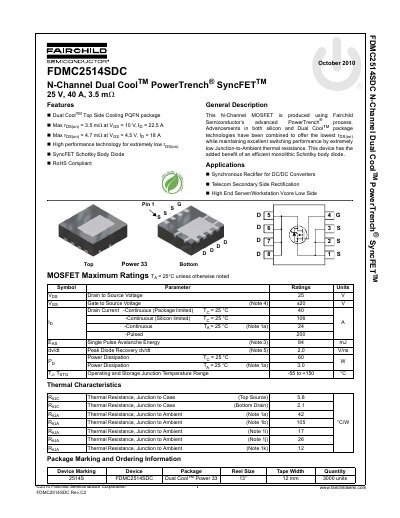

FDMC2514SDC N-Channel Dual CoolTM PowerTrench® SyncFETTM is an N-channel power transistor with extremely low RDS(on), supporting a maximum voltage of 25V and a current of 40A.
This document provides technical specifications for the FDMC2514SDC, an N-Channel MOSFET produced using Fairchild Semiconductor's advanced PowerTrench process. The device features a Dual Cool package for top-side cooling and includes an efficient monolithic SyncFET Schottky body diode.
| Power Dissipation (Ta = 25°C) | 3.0 W |
|---|---|
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance, Junction to Ambient (Still air, No Heat Sink) | 105 °C/W |
The operating and storage junction temperature range is from -55 to +150 °C.
