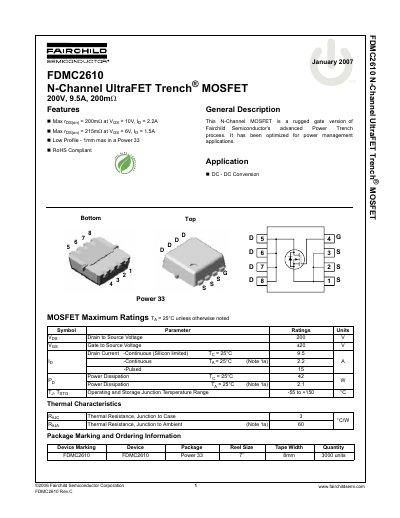

Fairchild Semiconductor FDMC2610 200V 9.5A MOSFET Datasheet

FDMC2610 N-Channel UltraFET Trench® MOSFET is a power management MOSFET from Fairchild Semiconductor Corporation with a maximum voltage of 200V, a maximum current of 9.5A, and a maximum resistance of 200mΩ. It has a low profile and is RoHS compliant.

Brand: Fairchild
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 7
File format: PDF
File size: 396 KB
Published: 11 July, 2012
Updated: 30 September, 2023
MD5 checksum: C21DFBFA65E3B7CF6942A5AF4167C2F9
PDF: Fairchild Semiconductor FDMC2610 200V 9.5A MOSFET Datasheet PDF

About this manual

The Fairchild Semiconductor FDMC2610 is an N-Channel UltraFET Trench MOSFET designed for power management applications, specifically DC-DC conversion. It features a rugged gate structure and a low profile of 1mm maximum height. The device is RoHS compliant and operates within a junction temperature range of -55°C to +150°C.

What's inside

Features
General Description
Application
Maximum Ratings
Thermal Characteristics
Electrical Characteristics
Typical Characteristics
Package Marking and Ordering Information
Package Dimensions
Disclaimer

Frequently asked questions

What is the maximum continuous drain current at a junction temperature of 25°C?

The maximum continuous drain current is 9.5 A when the junction temperature is 25°C.

What is the operating and storage junction temperature range?

The device operates and stores within a junction temperature range of -55 to +150 °C.
