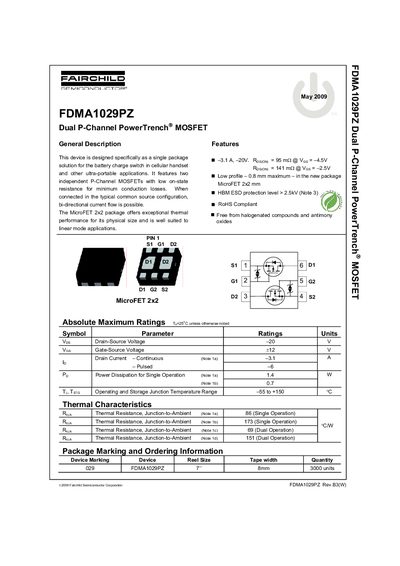

FDMA1029PZ is a dual P-channel power MOSFET from Fairchild Semiconductor Corporation with low on-state resistance and bidirectional current flow. It is suitable for battery charge switch in cellular handset and other ultra-portable applications.
The FDMA1029PZ is a dual P-Channel PowerTrench MOSFET designed specifically as a single package solution for battery charge switches in cellular handsets and other ultra-portable applications. It features two independent P-Channel MOSFETs with low on-state resistance for minimum conduction losses. When connected in a typical common source configuration, bi-directional current flow is possible. The device utilizes the MicroFET 2x2 package, which offers exceptional thermal performance for its physical size and is well suited to linear mode applications.
| Operating Junction Temperature Range | -55 to +150 °C |
|---|
The maximum continuous drain current is -3.1 A.
The maximum continuous drain current is -3.1 A.
The operating junction temperature range extends up to +150 °C.
