FDD8770/FDU8770 N-Channel PowerTrench® MOSFET is a N-channel MOSFET produced by Fairchild Semiconductor Corporation. This MOSFET has low gate charge, low rDS(on) and fast switching speed, which is very suitable for DC/DC converters.

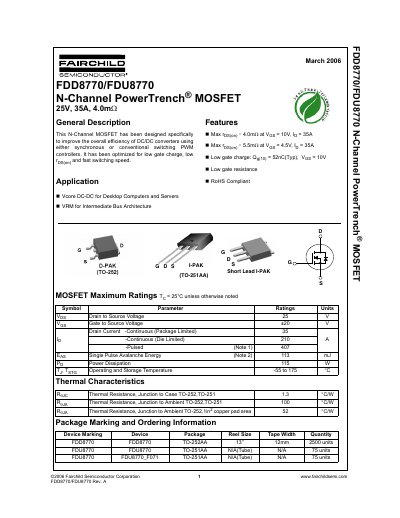

This document is a datasheet for the Fairchild Semiconductor FDD8770 and FDU8770 N-Channel PowerTrench MOSFETs. These devices are designed to improve the efficiency of DC/DC converters using synchronous or conventional switching PWM controllers. They are optimized for low gate charge, low power dissipation, and fast switching speed.
| Continuous Drain Current (Package Limited) | 35 A |
|---|
The device supports a continuous die-limited current of 210 A and a package-limited current of 35 A.
The MOSFET has a maximum power dissipation rating of 115 W.
The component operates and stores within a temperature range from -55 to 175 °C.
