FDD86250 N-Channel PowerTrench® MOSFET is produced by Fairchild Semiconductor Corporation. It is a N-channel MOSFET with a maximum on-state resistance of 22 mΩ and a rated voltage of 150 V. The maximum current is 50 A and it is used for DC - DC conversion.

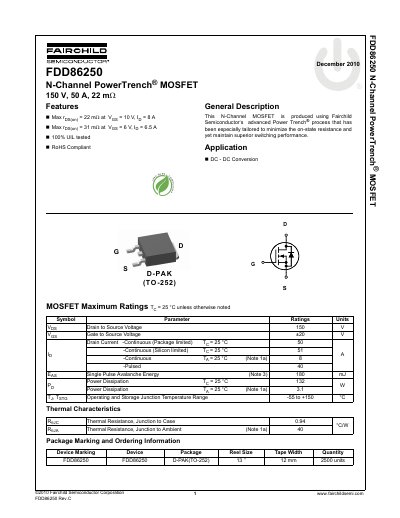

The document describes the Fairchild Semiconductor FDD86250, an N-Channel MOSFET produced using the PowerTrench process. It is designed to minimize on-state resistance while maintaining superior switching performance and is RoHS compliant. The device is available in a D-PAK (TO-252) package.
| Drain to Source Voltage | 150 V |
|---|---|
| Drain Current - Continuous (Package limited) | 50 A |
| Drain Current - Continuous (Silicon limited) | 51 A |
| Power Dissipation (Tc = 25°C) | 132 W |
| Thermal Resistance, Junction to Case | 0.94 °C/W |
| Package Type | D-PAK (TO-252) |
The maximum continuous drain current is 50 A when the case temperature is 25°C.
The maximum power dissipation is 132 W when the case temperature is 25°C.
The operating and storage junction temperature range is -55 to +150 °C.
