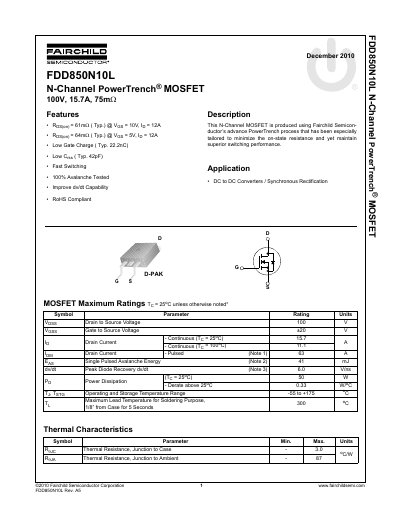

This document provides the maximum ratings and thermal characteristics of the FDD850N10L N-Channel PowerTrench® MOSFET, as well as describes its features and characteristics.
The document describes the N-Channel PowerTrench MOSFET model FDD850N10L manufactured by Fairchild Semiconductor. Key features include a low on-state resistance of 75mΩ (typical), low gate charge, and RoHS compliance. The device is designed for applications such as DC to DC converters and synchronous rectification.
The datasheet details maximum ratings including a drain-to-source voltage of 100V and continuous drain current up to 15.7A at 25°C. It also lists electrical characteristics like input capacitance, total gate charge, and switching times, along with typical performance curves for on-resistance, breakdown voltage, and thermal response.
| Drain to Source Voltage | 100 V |
|---|---|
| Continuous Drain Current (25°C) | 15.7 A |
| Power Dissipation (25°C) | 50 W |
| On-Resistance (Typical) | 75 mΩ |
| Package Type | D-PAK |
The device is suitable for DC to DC converters and synchronous rectification.
Yes, the datasheet states that the product is RoHS Compliant.
