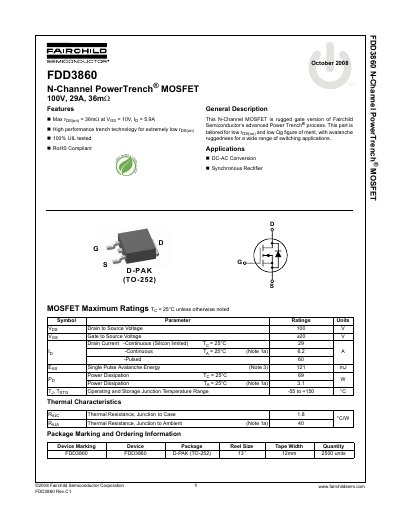

The FDD3860 is an N-Channel MOSFET from Fairchild Semiconductor that has extremely low on-resistance and has passed 100% UIL testing. It is RoHS compliant.
The FDD3860 is an N-Channel PowerTrench MOSFET designed for low on-resistance and low gate charge applications. It features a rugged gate structure and avalanche ruggedness suitable for a wide range of switching applications, including DC-AC conversion and synchronous rectification. The device is RoHS compliant and undergoes 100% UL tested procedures.
| Drain to Source Voltage | 100 V |
|---|---|
| Continuous Drain Current | 29 A |
| Pulsed Drain Current | 60 A |
| Power Dissipation | 69 W |
| Operating Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance Junction to Case | 1.8 °C/W |
| Static Drain to Source On Resistance | 36 mQ |
| Package Type | D-PAK (TO-252) |
The device is tailored for low rpg(an) and low Qg figure of merit, with avalanche ruggedness for a wide range of switching applications, including DC-AC Conversion and Synchronous Rectifier.
Yes, the document states that the product is RoHS Compliant.
The operating and storage junction temperature range is from -55 to +150 °C.
