FDB8443 N-Channel PowerTrench® MOSFET is a 40V, 182A, 3.0mΩ power MOSFET with low Miller Charge, low Qrr Body Diode, UIS Capability (Single Pulse and Repetitive Pulse) features.

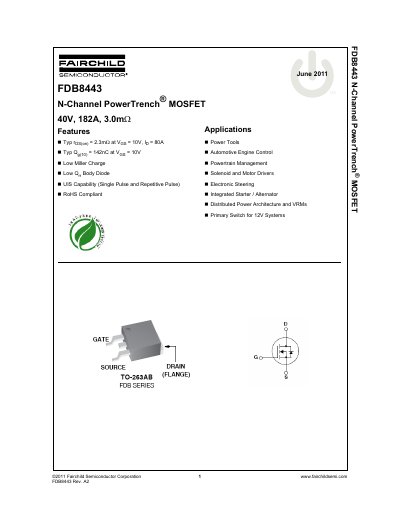

This document is a datasheet for the Fairchild Semiconductor FDB8443, an N-Channel PowerTrench MOSFET. The device is rated for 40V drain-to-source voltage, 182A continuous drain current, and 3.0mOhm on-resistance. It is designed for applications in power tools, automotive engine control, powertrain management, and solenoid or motor drivers.
| Drain to Source Voltage | 40 V |
|---|---|
| Power Dissipation | 188 W |
| Operating Temperature Range | -55 to +175 °C |
| Package Type | TO-263AB |
The FDB8443 can handle a single pulse avalanche energy of 531 mJ.
The maximum power dissipation for this component is rated at 188 W.
