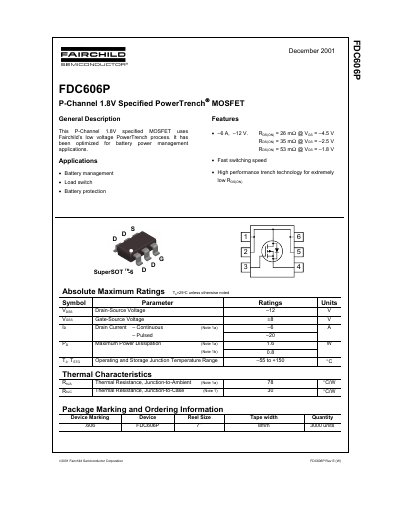

FDC606P is a P-channel MOSFET with a rated voltage of 1.8V, a maximum current of -6A, a maximum voltage of -12V, and a fast switching speed with extremely low RDS(ON).
The FDC606P is a P-Channel MOSFET utilizing Fairchild's low voltage PowerTrench process. It is specifically optimized for battery power management applications, serving as a load switch or battery protection device. Key features include fast switching speed and high performance trench technology designed for extremely low on-resistance.
| Drain-Source Voltage | -12 V |
|---|---|
| Gate-Source Voltage | +8 V |
| Pulsed Drain Current | -20 A |
| Operating Junction Temperature | -55 to +150 °C |
| Output Capacitance | 679 pF |
| Turn-On Delay Time | 44 to 19 ns |
| Total Gate Charge | 18 to 25 nC |
It is optimized for battery power management applications.
The listed applications are battery management, load switch, and battery protection.
The maximum continuous drain current is -6 A.
The maximum power dissipation is 1.6 W.
