The 2N3416 / 2N3417 NPN General Purpose Amplifier is a bipolar junction transistor (BJT) with a maximum rated voltage of 50 V and a maximum rated current of 500 mA. It is suitable for general purpose amplifiers and switches requiring collector currents up to 300 mA.

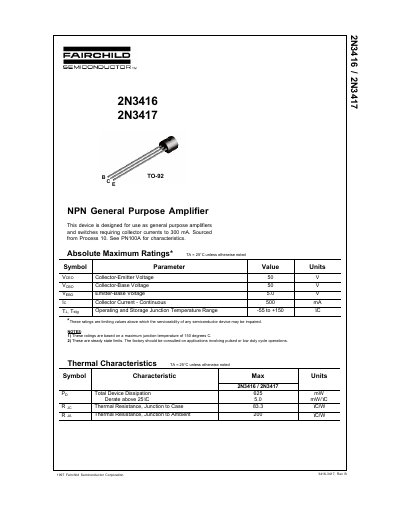

This document provides technical specifications for the Fairchild Semiconductor 2N3416 and 2N3417 NPN general purpose amplifiers. These devices are designed for use as amplifiers and switches requiring collector currents up to 300 mA, sourced from Process 10. The datasheet includes absolute maximum ratings, thermal characteristics, and electrical characteristics such as current gain and saturation voltages.
| Collector-Emitter Voltage | 50 V |
|---|---|
| Collector Current - Continuous | 500 mA |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Total Device Dissipation | 625 mW |
| DC Current Gain (2N3416) | 75 to 225 |
| DC Current Gain (2N3417) | 180 to 540 |
The device supports a continuous collector current of 500 mA.
The operating and storage junction temperature range is -55 to +150 °C.
The maximum total device dissipation is 625 mW.
