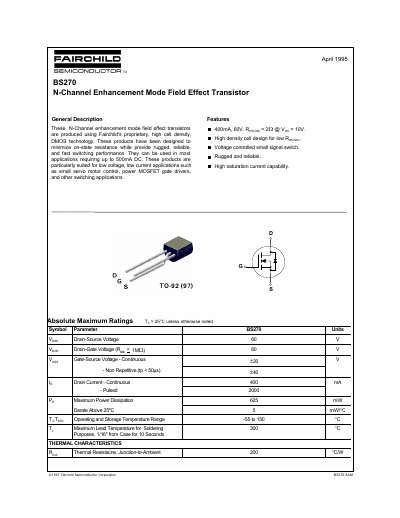

BS270 is a N-channel enhancement mode field effect transistor produced by Fairchild with a rated current of 400mA and a rated voltage of 60V.
The BS270 is an N-Channel enhancement mode field effect transistor produced using Fairchild's proprietary high cell density DMOS technology. It is designed to minimize on-state resistance while providing rugged, reliable, and fast switching performance. The device is particularly suited for low voltage, low current applications such as small servo motor control and power MOSFET gate drivers, capable of handling up to 500mA DC.
| Drain-Source Voltage | 60 V |
|---|---|
| Drain Current - Continuous | 400 mA |
| Maximum Power Dissipation | 625 mW |
| Operating Temperature Range | -55 to 150 °C |
| Thermal Resistance, Junction-to-Ambient | 200 °C/W |
| Package Type | TO-92 |
The maximum continuous drain current is 400 mA.
The operating and storage temperature range is from -55 to 150 °C.
