IXGH40N30BD1 is a high power density, high switching speed, easy-to-mount IGBT and FRED device, suitable for AC motor speed control, DC servo and robot drives, DC choppers, uninterruptible power supplies (UPS) and switched-mode and resonant-mode power supplies.

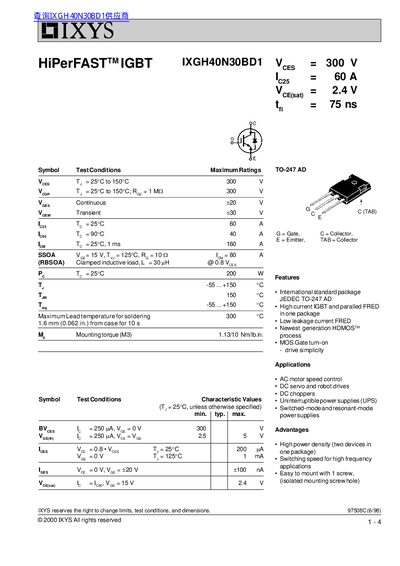

This document is a technical datasheet for the IXYS IXGH40N30BD1, a HiPerFAST™ IGBT device. It features a high current IGBT and parallel FRED in a single JEDEC TO-247 AD package, designed for applications such as AC motor speed control, DC servo drives, and power supplies. The datasheet provides comprehensive electrical specifications including maximum ratings, static characteristics, and switching parameters.
| Package Type | TO-247 AD |
|---|
It is suitable for AC motor speed control, DC servo and robot drives, DC choppers, UPS, and switched-mode power supplies.
The maximum lead temperature for soldering is 300°C for 10 seconds.
