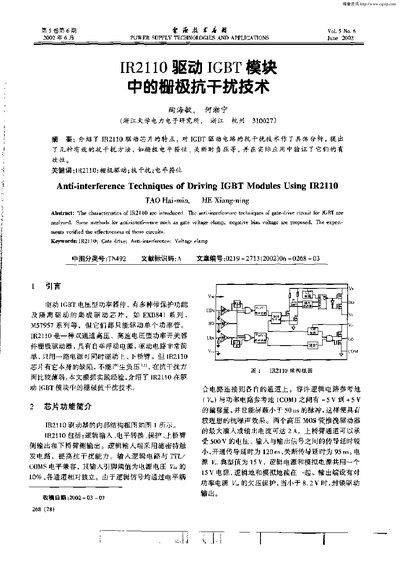

This document describes anti‑interference methods for the IR2110 IGBT driver module, including gate‑voltage clamping and negative bias techniques.
The paper introduces the IR2110 high‑and‑low side IGBT driver and discusses the need for robust anti‑interference measures in gate‑drive circuits. It outlines the basic characteristics of the device and the typical problems caused by noise and voltage spikes.
Several anti‑interference techniques are presented, such as gate‑voltage clamping and applying a negative bias voltage to the gate. Experimental results verify that these methods improve noise immunity and allow reliable operation up to 500 kHz switching frequency. This manual is written in Chinese.
| Maximum voltage rating | 500 V |
|---|---|
| Maximum switching frequency | 500 kHz |
The IR2110 is rated for a maximum voltage of 500 V.
The device can operate at switching frequencies up to 500 kHz.
