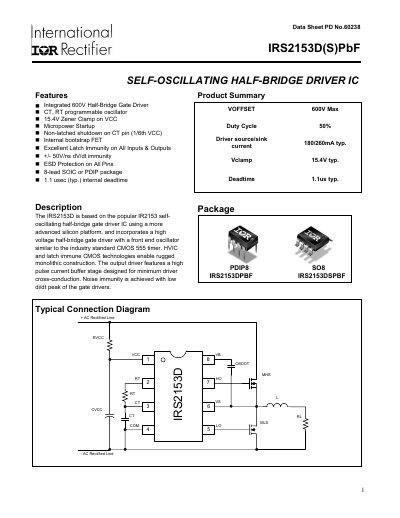

The document describes the features and characteristics of the IRS2153D(S)PbF self-oscillating half-bridge driver IC, including 600V maximum voltage offset, 50% duty cycle, 180/260mA driver source/sink current, 15.4V Zener clamp, etc.
The IRS2153D(S)PbF is a self-oscillating half-bridge driver IC based on an advanced silicon platform. It incorporates a high-voltage half-bridge gate driver with a front-end oscillator similar to the industry-standard CMOS 555 timer. The device utilizes HVIC and latch-immune CMOS technologies for rugged monolithic construction and includes an internal bootstrap FET driver.
| Integrated Half-Bridge Gate Driver Voltage | 600V Max |
|---|---|
| Zener Clamp on VCC | 15.4V |
| Startup Duty Cycle | 50% |
| Internal Deadtime | 1.1 usec (typ.) |
| Output Source Current | 180mA typ. |
| Output Sink Current | 260mA typ. |
| ESD Protection | 15.4V typ. |
| Package Types | 8-lead SOIC or PDIP |
The maximum high side floating supply voltage is 625V.
The typical oscillator frequency is 19.0 kHz when RT is 36.5kΩ.
The typical internal deadtime is 1.1 microseconds.
Oscillation stops if the CT pin is pulled down below 1/6th of VCC.
