The 910A phase control thyristors ST700C..L series features a metal case with ceramic insulator. It is suitable for applications such as DC motor control, controlled DC power supplies, and AC controllers. Key features include center amplifying gate, international standard case TO-200AC (B-PUK), and a rated current of 910A @ 55°C.

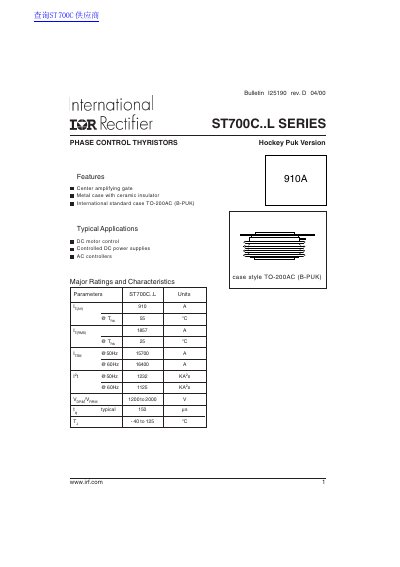

The document is a technical bulletin (I25190 rev. D) for the ST700C..L Series of 910A phase control thyristors manufactured by International Rectifier. These devices feature a metal case with ceramic insulator in a TO-200AC (B-PUK) package and are designed for applications such as DC motor control, controlled DC power supplies, and AC controllers.
| Average on-state current (IT(AV)) | 910 A @ 55 °C double side cooled |
|---|---|
| Peak non-repetitive surge current (ITSM) | 15700 A @ 50Hz |
| Maximum operating temperature (TJ) | -40 to 125 °C |
| Typical turn-off time (tq) | 150 µs |
| Maximum peak gate power (PGM) | 10.0 W |
| Case style | TO-200AC (B-PUK) |
Typical applications include DC motor control, controlled DC power supplies, and AC controllers.
The maximum average on-state current (IT(AV)) is 910 A when double side cooled at a heatsink temperature of 55 °C.
The maximum operating temperature range (TJ) is from -40 to 125 °C.
