MC10E416/100E416 is a 5-bit differential line receiving device with a 2.0GHz bandwidth high frequency output, making it ideal for buffering of very high speed oscillators.

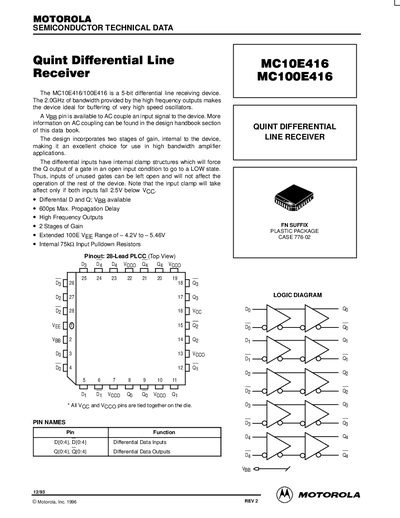

The document describes the MC10E416/MC100E416, a 5-bit differential line receiving device designed for buffering very high speed oscillators. The device incorporates two stages of internal gain and features high frequency outputs with up to 2.0GHz bandwidth.
| Number of bits | 5-bit |
|---|---|
| Bandwidth | 2.0GHz |
| Package Type | 28-Lead PLCC |
| Max Propagation Delay | 600ps |
The Vpp pin is available to AC couple an input signal to the device.
The design incorporates two stages of gain, internal to the device.
