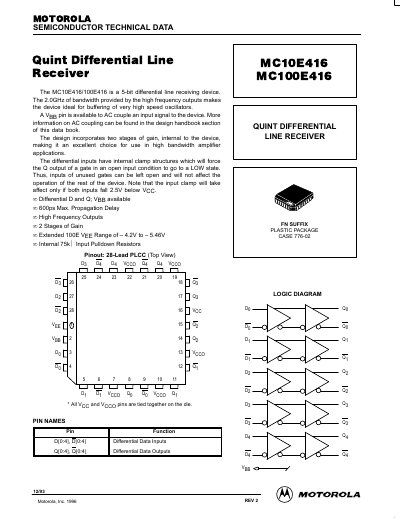

The MC10E416/100E416 is a 5-bit differential line receiving device. The 2.0GHz of bandwidth provided by the high frequency outputs makes the device ideal for buffering of very high speed oscillators. A VBB pin is available to AC couple an input signal to the device. The design incorporates two stages of gain, internal to the device, making it an excellent choice for use in high bandwidth amplifier applications. The differential inputs have internal clamp structures which will force the Q output of a gate in an open input condition to go to a LOW state. Thus, inputs of unused gates can be left open and will not affect the operation of the rest of the device.
The MC10E416/MC100E416 is a 5-bit differential line receiving device designed for high-speed applications, such as buffering very high speed oscillators. The device features a bandwidth of 2.0GHz and incorporates two stages of internal gain. It includes a Vpp pin for AC coupling input signals and differential inputs with internal clamp structures to handle open input conditions.
| Number of Bits | 5-bit |
|---|---|
| Bandwidth | 2.0GHz |
| Propagation Delay (Max) | 600ps |
| Gain Stages | 2 |
| Package Type | 28-Lead PLCC |
| Package Case | CASE 776-02 |
| Input Clamp Threshold | 2.5V below Voc |
The maximum propagation delay is 600ps.
The device incorporates two stages of gain internally.
The high frequency outputs provide a bandwidth of 2.0GHz.
