Motorola MC10EL15/MC100EL15 1:4 Clock Distribution Chip Datasheet

The MC10EL/100EL15 is a low skew 1:4 clock distribution chip designed explicitly for low skew clock distribution applications. The device can be driven by either a differential or single-ended ECL or, if positive power supplies are used, PECL input signal. If a single-ended input is to be used the VBB output should be connected to the CLK input and bypassed to ground via a 0.01µF capacitor. The VBB output is designed to act as the switching reference for the input of the EL15 under single-ended input conditions, as a result this pin can only source/sink up to 0.5mA of current. The EL15 features a multiplexed clock input to allow for the distribution of a lower speed scan or test clock along with the high speed system clock. When LOW (or left open and pulled LOW by the input pulldown resistor) the SEL pin will select the differential clock input. The common enable (EN) is synchronous so that the outputs will only be enabled/disabled when they are already in the LOW state. This avoids any chance of generating a runt clock pulse when the device is enabled/disabled as can happen with an asynchronous control. The internal flip flop is clocked on the falling edge of the input clock, therefore all associated specification limits are referenced to the negative edge of the clock input.

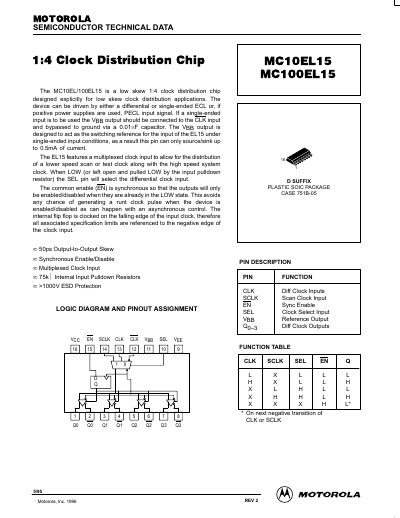

Motorola MC10EL15/MC100EL15 1:4 Clock Distribution Chip Datasheet - cover page
Brand
Motorola
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
5
File format
PDF
File size
60 KB
Published
10 July, 2012
Updated
29 September, 2023
MD5 checksum
71721C9207531DB33DDE3CF88C750285

About this manual

The MC10EL15 and MC100EL15 are low skew 1:4 clock distribution chips designed explicitly for low skew clock distribution applications. The device can be driven by either a differential or single-ended ECL or, if positive power supplies are used, PECL input signal. It features a multiplexed clock input to allow for the distribution of a lower speed scan or test clock along with the high speed system clock.

What's inside

  • Description
  • Absolute Maximum Ratings
  • DC Characteristics
  • AC/DC Characteristics
  • Outline Dimensions
  • Pin Description
  • Function Table

Specifications

Output-to-Output Skew50ps
Operating Temperature Range-40 to +85 C
Internal Input Pulldown Resistors75kQ
ESD Protection>1000V
Package TypePlastic SOIC Package

Frequently asked questions

What is the maximum continuous output current for this chip?

The device can handle a continuous output current of 50 mA.

What is the operating temperature range for the MC10EL15?

The chip operates within a temperature range of -40 to +85 degrees Celsius.

What is the maximum output-to-output skew specified for this device?

The chip provides a maximum output-to-output skew of 50 ps.
