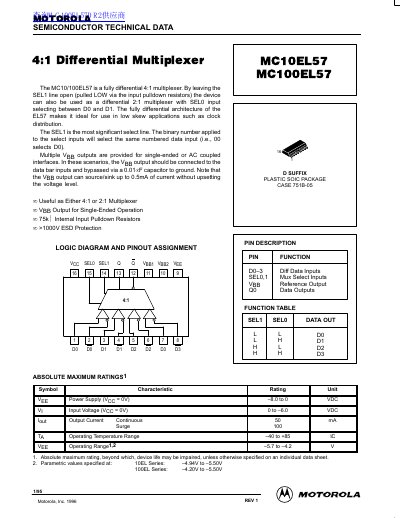

The MC10/100EL57 is a fully differential 4:1 multiplexer from Motorola. By leaving the SEL1 line open (pulled LOW via the input pulldown resistors) the device can also be used as a differential 2:1 multiplexer with SEL0 input selecting between D0 and D1. The fully differential architecture of the EL57 makes it ideal for use in low skew applications such as clock distribution. The SEL1 is the most significant select line. The binary number applied to the select inputs will select the same numbered data input (i.e., 00 selects D0).
The document describes the MC10/100EL57, a fully differential 4:1 multiplexer designed for low skew applications such as clock distribution. The device can also function as a differential 2:1 multiplexer by leaving the SEL1 line open. It features multiple VBB outputs for single-ended or AC coupled interfaces and includes internal pulldown resistors.
| Function | Fully differential 4:1 multiplexer |
|---|---|
| Package Type | Plastic SOIC Package (D Suffix) |
| Operating Temperature Range | -40 to +85 °C |
| Power Supply Voltage (VEE) | -4.2V to -5.5V (100EL Series) |
| Output Current Continuous | 50 mA |
Yes, by leaving the SEL1 line open and pulled LOW via input pulldown resistors.
Yes, by leaving the SEL1 line open and pulled LOW, the device functions as a differential 2:1 multiplexer.
The 10EL series operates between -40 and +85 degrees Celsius.
The maximum continuous output current is 50 mA.
