The CMPT651 is a high current NPN silicon transistor from Central Semiconductor Corp. It has low power consumption, high efficiency and strong anti-interference ability, and is suitable for high current applications.

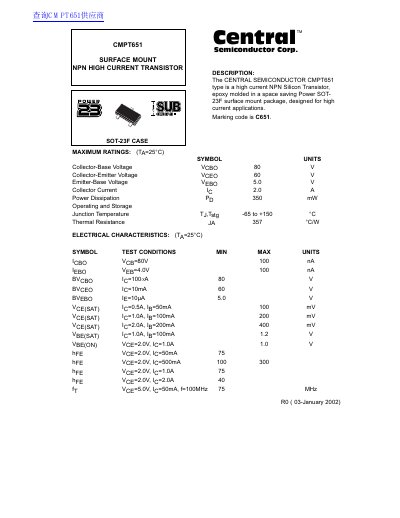

The Central Semiconductor CMPT651 is a high current NPN Silicon Transistor designed for high current applications. It is epoxy molded in a space-saving Power SOT-23F surface mount package. The marking code for the device is C651.
The document provides maximum ratings including a collector-emitter voltage of 60V and a collector current of 2.0A. It also lists electrical characteristics such as current gain (hFE) and saturation voltages, along with mechanical outline dimensions for the SOT-23F case.
| Collector-Base Voltage | 80 V |
|---|---|
| Collector-Emitter Voltage | 60 V |
| Emitter-Base Voltage | 5.0 V |
| Collector Current | 2.0 A |
| Power Dissipation | 350 mW |
| Operating and Storage Junction Temperature | -65 to +150 °C |
| Thermal Resistance | 357 °C/W |
The maximum collector current is 2.0 A.
The maximum power dissipation is 350 mW.
The maximum collector-emitter voltage is 60 V.
