The CENTRAL SEMICONDUCTOR CMPTA44 is a high voltage NPN transistor with a maximum collector-emitter reverse voltage of 450V, a maximum emitter-base reverse voltage of 6.0V, a maximum collector current of 300mA, and a maximum power dissipation of 350mW.

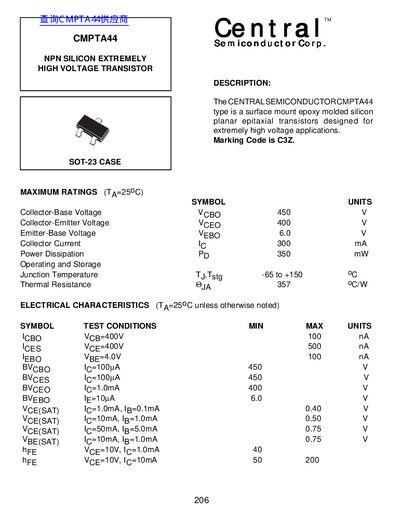

The document describes the Central Semiconductor CMPTA44, a surface mount epoxy molded silicon planar epitaxial transistor designed for extremely high voltage applications. The device is housed in an SOT-23 case and features a marking code of C3Z.
Key specifications include a maximum Collector-Emitter Voltage (VCEO) of 400 V and a maximum Collector Current of 300 mA. The datasheet provides detailed electrical characteristics, such as leakage currents and breakdown voltages under various test conditions, along with package dimensions in inches and millimeters.
| Collector-Emitter Voltage (VCEO) | 400 V |
|---|---|
| Collector-Base Voltage (VCBO) | 450 V |
| Emitter-Base Voltage (VEBO) | 6.0 V |
| Operating and Storage Junction Temperature | -65 to +150 °C |
The maximum collector-emitter voltage is 400 V.
The operating and storage temperature range is -65 to +150 °C.
