The CENTRAL SEMICONDUCTOR CMPTA96 is a surface mount, epoxy molded PNP silicon planar epitaxial transistor designed for extremely high voltage applications.

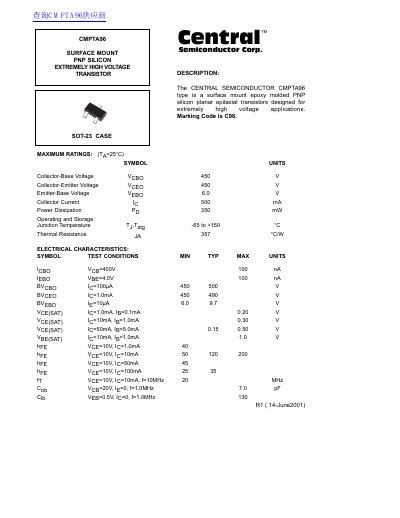

The document describes the Central Semiconductor CMPTA96, a surface mount epoxy molded PNP silicon planar epitaxial transistor designed for extremely high voltage applications. The device features an SOT-23 case and carries the marking code C96.
Key specifications include a maximum collector-base voltage of 450V and a power dissipation of 350mW at 25°C. The datasheet details electrical characteristics such as breakdown voltages, saturation voltages, transition frequency (ft), and capacitance values under specific test conditions.
The package height ranges from a minimum of 2.80 mm to a maximum of 3.05 mm.
