CMPTA42 is a NPN type silicon complementary high voltage transistor from Central Semiconductor. It has a maximum collector-base voltage of 300V, a maximum collector-emitter voltage of 300V, a maximum emitter-base voltage of 6.0V, a maximum collector current of 500mA, a power dissipation of 350mW, and a working temperature range of -65 to +150 degrees. The thermal resistance is 357 degrees / watt.

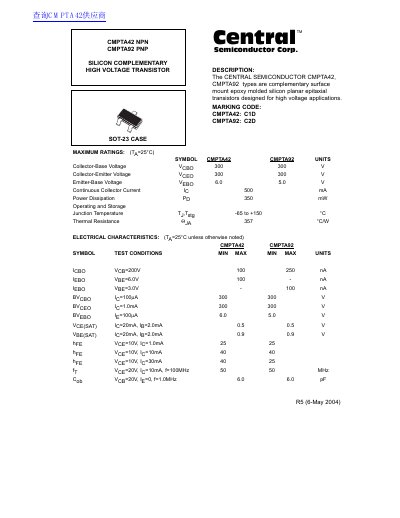

This document describes the CMPTA42 (NPN) and CMPTA92 (PNP) types, which are surface mount epoxy molded silicon planar epitaxial transistors designed for high voltage applications. The devices feature a maximum collector-base voltage of 300V and operate within a junction temperature range of -65 to +150°C.
| Operating and Storage Junction Temperature | -65 to +150 °C |
|---|---|
| Package Type | SOT-23 CASE |
The operating and storage junction temperatures range from -65 to +150 °C.
