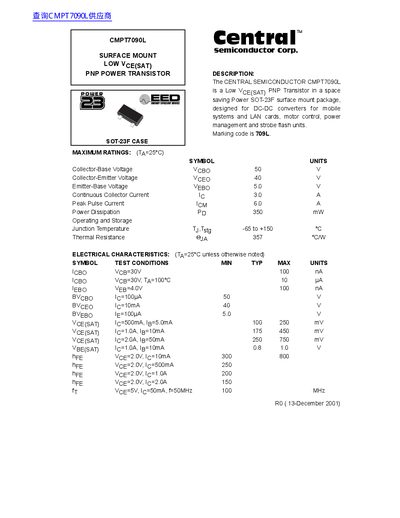

The CENTRAL SEMICONDUCTOR CMPT7090L is a Low VCE(SAT) PNP Transistor in a space saving Power SOT-23F surface mount package, designed for DC-DC converters for mobile systems and LAN cards, motor control, power management and strobe flash units.
The document describes the CENTRAL SEMICONDUCTOR CMPT7090L as a Low VCE(SAT) PNP Transistor in a space-saving Power SOT-23F surface mount package. It is designed for applications including DC-DC converters for mobile systems and LAN cards, motor control, power management, and strobe flash units.
The datasheet lists maximum ratings such as a Collector-Emitter Voltage of 40 V and a Continuous Collector Current of 3.0 A. Electrical characteristics include saturation voltage (VCE(SAT)) values under various current conditions and DC current gain (hFE) specifications.
| Collector-Emitter Voltage | 40 V |
|---|---|
| Continuous Collector Current | 3.0 A |
| Power Dissipation | 350 mW |
| Operating and Storage Junction Temperature | -65 to +150 °C |
| Thermal Resistance | 357 °C/W |
The marking code is 709L.
It is available in a Power SOT-23F surface mount package.
