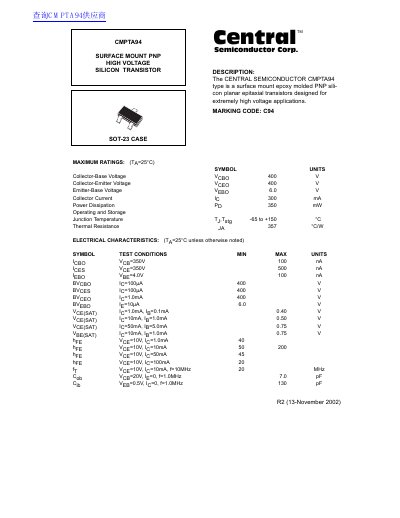

Central Semiconductor CMPTA94 Surface Mount PNP High Voltage Silicon Transistor Datasheet

The CMPTA94 is a surface mount epoxy molded PNP silicon planar epitaxial transistor designed for extremely high voltage applications.

Brand: Central Semiconductor
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 119 KB
Published: 10 July, 2012
Updated: 28 September, 2023
MD5 checksum: 388CBFBB032FA21103F4CB589455F547
PDF: Central Semiconductor CMPTA94 Surface Mount PNP High Voltage Silicon Transistor Datasheet PDF

About this manual

The Central Semiconductor CMPTA94 is a surface mount epoxy molded PNP silicon planar epitaxial transistor designed for extremely high voltage applications. It features a SOT-23 case and is marked with the code C94.

The document provides maximum ratings, electrical characteristics, and mechanical outline dimensions for the device. Key specifications include a collector-base voltage of 400V and a power dissipation of 350mW.

What's inside

Maximum Ratings
Electrical Characteristics
Marking Code
Mechanical Outline
Dimensions

Specifications

Collector-Base Voltage	400 V
Collector-Emitter Voltage	400 V
Emitter-Base Voltage	6.0 V
Collector Current	300 mA
Power Dissipation	350 mW
Operating and Storage Junction Temperature	-65 to +150 °C
Thermal Resistance	357 CAV

Frequently asked questions

What is the maximum power dissipation rating?

The maximum power dissipation is 350 mW.

What is the maximum collector-base voltage?

The maximum collector-base voltage is 400 V.
