The CMPTA29 is a high voltage NPN silicon Darlington transistor manufactured by Central Semiconductor Corp. The manufacturing process is an epitaxial planar process and the package is a surface mount package. It is designed for applications requiring extremely high voltage and high gain.

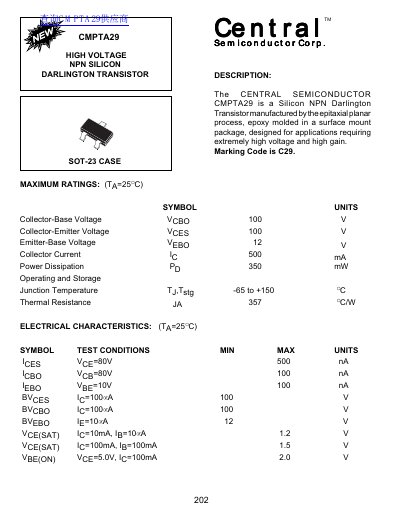

The Central Semiconductor CMPTA29 is a Silicon NPN Darlington Transistor manufactured using the epitaxial planar process. It is epoxy molded in a surface mount SOT-23 package and is designed for applications requiring extremely high voltage and high gain. The marking code for this device is C29.
The document provides maximum ratings, electrical characteristics, and physical dimensions. Key specifications include a collector-emitter voltage of 100V, a collector current of 500mA, and a power dissipation of 350mW. The junction temperature range is -65 to +150°C.
| Package Type | SOT-23 |
|---|
The marking code is C29.
The minimum hFE is 10,000 under those test conditions.
