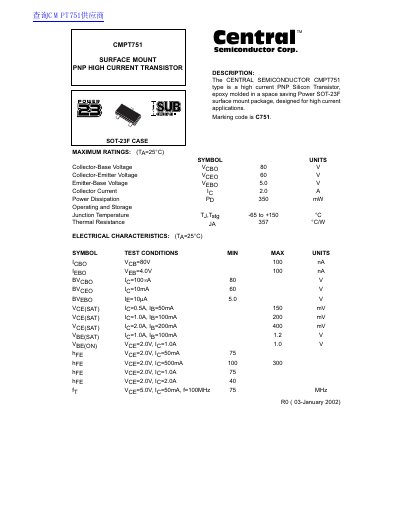

This document describes the maximum ratings and electrical characteristics of the CMPT751 PNP high current surface mount transistor. The CMPT751 is designed for high current applications and is packaged in a SOT-23F package.
The Central Semiconductor CMPT751 is a high current PNP silicon transistor designed for high current applications. It is epoxy molded in a space-saving Power SOT-23F surface mount package and is marked with the code C751.
The document provides maximum ratings, electrical characteristics, and mechanical outline dimensions for the device. Key specifications include a collector current of 2.0 A and a power dissipation of 350 mW.
| Collector-Base Voltage | 80 V |
|---|---|
| Collector-Emitter Voltage | 60 V |
| Emitter-Base Voltage | 5.0 V |
| Power Dissipation | 350 mW |
| Operating and Storage Junction Temperature | -65 to +150 °C |
| Package Type | SOT-23F |
The marking code is C751.
It is packaged in a Power SOT-23F surface mount package.
