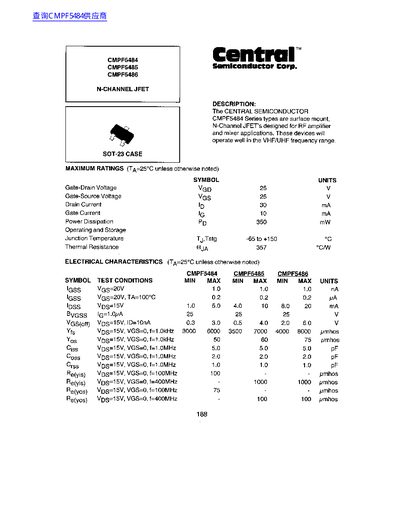

Central Semiconductor CMPF5484/CMPF5485/CMPF5486 N-Channel JFET Datasheet

Brand: Central Semiconductor
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 133 KB
Published: 10 July, 2012
Updated: 31 July, 2012
MD5 checksum: E72B1A822AD27ABFCF94B3732AAD4158
PDF: Central Semiconductor CMPF5484/CMPF5485/CMPF5486 N-Channel JFET Datasheet PDF

About this manual

This document provides technical specifications for the Central Semiconductor CMPF5484 Series, which are surface-mount N-Channel JFETs intended for RF amplifier and mixer applications. The devices are designed to operate effectively within the VHF and UHF frequency ranges.

What's inside

Description
Maximum Ratings
Electrical Characteristics
Package Dimensions
Marking Code

Specifications

Package Type	SOT-23 CASE
Device Type	N-CHANNEL JFET
Operating Frequency Range	VHF/UHF
Operating and Storage Junction Temperature	-65 to +150 °C

Frequently asked questions

What are the applications for the CMPF5484 Series?

These devices are designed for RF amplifier and mixer applications.

In which frequency range do these JFETs operate?

They operate well in the VHF/UHF frequency range.

What is the maximum operating junction temperature?

The maximum operating and storage junction temperature is +150 °C.
