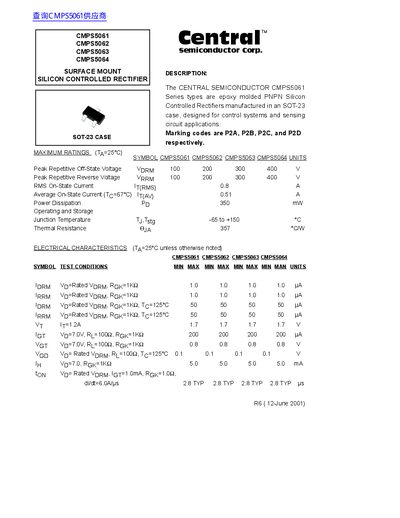

The CENTRAL SEMICONDUCTOR CMPS5061 Series types are epoxy molded PNPN Silicon Controlled Rectifiers manufactured in an SOT-23 case, designed for control systems and sensing circuit applications.
The document describes the CENTRAL SEMICONDUCTOR CMPS5061 Series types as epoxy molded PNPN Silicon Controlled Rectifiers manufactured in an SOT-23 case. These devices are designed for control systems and sensing circuit applications, with marking codes P2A through P2D corresponding to models CMPS5061 through CMPS5064 respectively.
| Peak Repetitive Off-State Voltage (VDRM) | 100, 200, 300, or 400 V |
|---|---|
| Peak Repetitive Reverse Voltage (VRRM) | 100, 200, 300, or 400 V |
| RMS On-State Current (IT(RMS)) | 0.8 A for CMPS5061/CMPS5062, 0.51 A for CMPS5063/CMPS5064 |
| Operating and Storage Temperature Range | -65 to +150 °C |
The devices are manufactured in an SOT-23 case.
CMPS5064 uses the P2D marking code.
