The CENTRAL SEMICONDUCTOR CMPF4416A type is an epoxy molded N-Channel Silicon Junction Field Effect Transistor manufactured in an SOT-23 case, designed for VHF amplifier and mixer applications.
The Central Semiconductor CMPF4416A is an epoxy molded N-Channel Silicon Junction Field Effect Transistor manufactured in an SOT-23 case. It is specifically designed for VHF amplifier and mixer applications and features a marking code of 6BG.

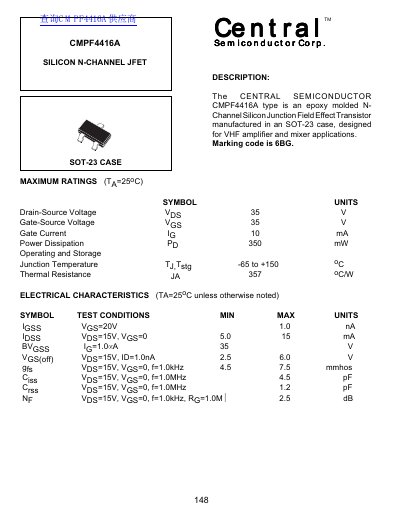

The document provides maximum ratings and electrical characteristics for the device at a temperature of 25°C. Key specifications include a Drain-Source Voltage of 35 V, a Power Dissipation of 350 mW, and a Junction Temperature range of -65 to +150 °C. The datasheet also includes a lead code diagram identifying the Drain, Source, and Gate pins.
| Package Type | SOT-23 |
|---|---|
| Marking Code | 6BG |
It is designed for VHF amplifier and mixer applications.
