This datasheet provides maximum ratings, electrical characteristics, and feature characteristics of Central Semiconductor's 5.0 Amp Surface Mount Silicon Ultra Fast Recovery Rectifier.

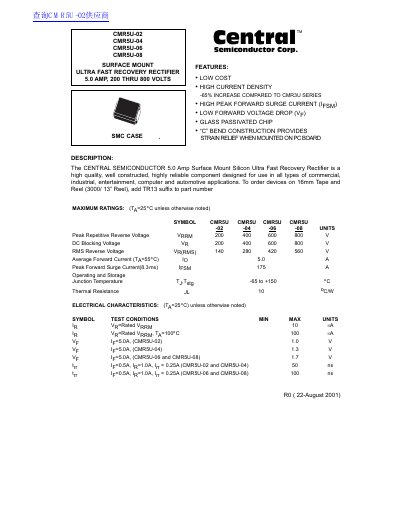

This document describes the Central Semiconductor CMR5U series of 5.0 Amp Surface Mount Silicon Ultra Fast Recovery Rectifiers. These components are designed for use in commercial, industrial, entertainment, computer, and automotive applications. The series includes four specific models: CMR5U-02, CMR5U-04, CMR5U-06, and CMR5U-08.
| Average Forward Current | 5.0 A |
|---|---|
| Peak Forward Surge Current | 175 A |
| Operating and Storage Junction Temperature | -65 to +150 °C |
| Peak Repetitive Reverse Voltage (CMR5U-02) | 200 V |
| Peak Repetitive Reverse Voltage (CMR5U-08) | 800 V |
| Forward Voltage Drop (CMR5U-02) | 1.0 V |
| Forward Voltage Drop (CMR5U-06 and CMR5U-08) | 1.7 V |
The devices can handle a peak forward surge current of 175 A.
The component operates and stores within a range of -65 to +150 °C.
The maximum forward voltage drop is 1.7 V when the current is 5.0 A.
