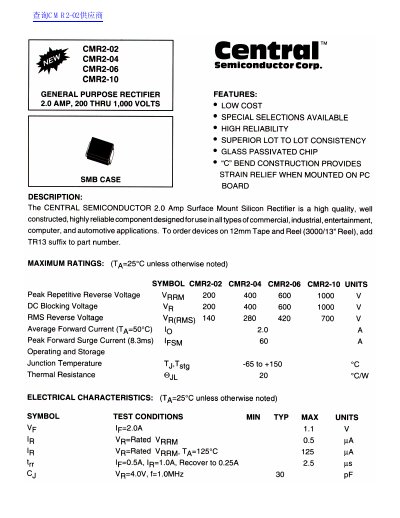

This document is a datasheet for the Central Semiconductor CMR2 series of general purpose silicon rectifiers. The components are 2.0 Amp surface mount devices available in voltages ranging from 200 to 1,000 volts. They feature a glass passivated chip and C-bend construction for strain relief.
| Average Forward Current | 2.0 A |
|---|---|
| Peak Repetitive Reverse Voltage | 200 to 1,000 V |
| Peak Forward Surge Current | 60 A |
| Operating and Storage Temperature | -65 to +150 °C |
| Thermal Resistance | 20 °C/W |
The device uses an SMB case board.
Add TR13 suffix to the part number for 12mm Tape and Reel.
