CENTRAL Semiconductor 2.0 Amp Surface Mount Silicon Ultra Fast Recovery Rectifier is a high quality, well constructed, highly reliable component designed for use in all types of commercial, industrial, entertainment, computer, and automotive applications.

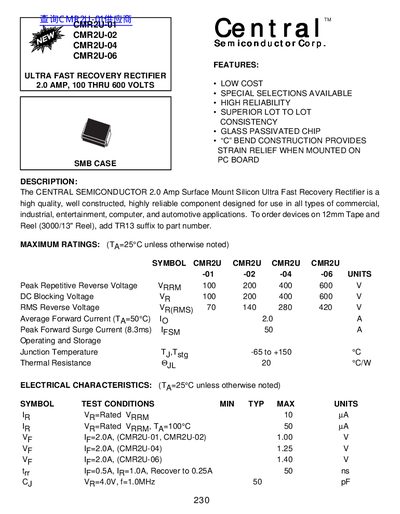

This document is a datasheet for the Central Semiconductor CMR2U series of 2.0 Amp Surface Mount Silicon Ultra Fast Recovery Rectifiers. The components are designed for use in commercial, industrial, entertainment, computer, and automotive applications.
The datasheet provides detailed maximum ratings including peak repetitive reverse voltage ranging from 100V to 600V across the CMR2U-01 through CMR2U-06 models. It also lists electrical characteristics such as forward voltage drop and recovery time, along with marking codes for each specific model.
| Average Forward Current (Ta=50°C) | 2.0 A |
|---|---|
| Peak Repetitive Reverse Voltage VRRM | 100 to 600 V |
| Peak Forward Surge Current (8.3ms) | 50 A |
| Operating and Storage Junction Temperature | -65 to +150 °C |
| Thermal Resistance OIL | 20 °C/W |
The typical forward voltage drop (VF) for the CMR2U-04 model at Ip=2.0A is 1.25V.
The marking codes are CU201 for CMR2U-01, CU202 for CMR2U-02, CU204 for CMR2U-04, and CU206 for CMR2U-06.
