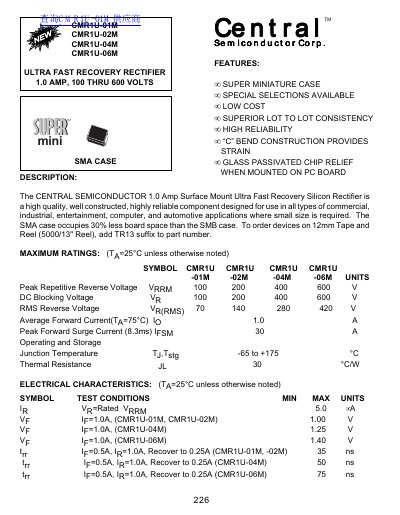

This document describes the Central Semiconductor CMR1U series of 1.0 Amp Surface Mount Ultra Fast Recovery Silicon Rectifiers. These components are designed for use in commercial, industrial, entertainment, computer, and automotive applications where small size is required. The devices feature a super miniature SMA case that occupies 30% less board space than the SMB case.
| Peak Repetitive Reverse Voltage | 100, 200, 400, 600 V |
|---|---|
| DC Blocking Voltage | 100, 200, 400, 600 V |
| Average Forward Current | 1.0 A |
| Peak Forward Surge Current | 30 A |
| Operating and Storage Junction Temperature | -65 to +175 °C |
| Thermal Resistance | 30 °C/W |
| Reverse Leakage Current | 5.0 uA |
| Forward Voltage Drop (CMR1U-01M, CMR1U-02M) | 1.00 V |
| Forward Voltage Drop (CMR1U-04M) | 1.25 V |
| Forward Voltage Drop (CMR1U-06M) | 1.40 V |
| Reverse Recovery Time (CMR1U-01M, CMR1U-02M) | 35 ns |
| Reverse Recovery Time (CMR1U-04M) | 50 ns |
| Reverse Recovery Time (CMR1U-06M) | 75 ns |
The average forward current rating is 1.0 A at a temperature of 75°C.
The peak forward surge current rating is 30 A for an 8.3ms duration.
The operating and storage junction temperature range is from -65 to +175 °C.
