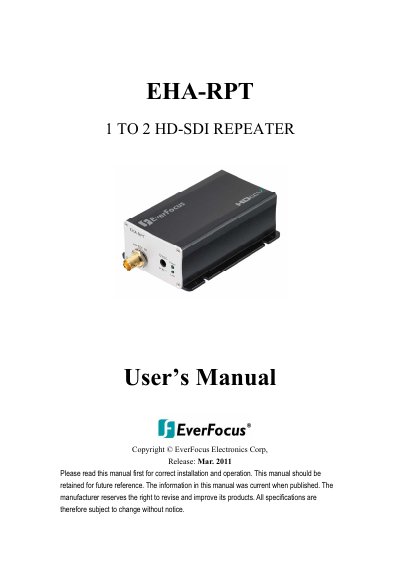

This user manual provides guidance on the correct installation and operation of the EHA-RPT 1 TO 2 HD-SDI REPEATER. It includes specifications and precautions for the device.
The EverFocus EHA-RPT is a 1 to 2 HD-SDI repeater designed to split a single high-definition digital video signal into two streams for presentation on HDTV or HDMI monitors. It supports HD-SDI video signals compliant with SMPTE 292M and 296M standards at data rates up to 1.485 Gb/s. The device features integrated cable equalizer technology to process HD-SDI digital video at up to 1920 x 1080 resolution over 75 Ω coaxial cable, providing a complete solution for interlaced and progressive scan HD-SDI digital video transmission.
| Video support | 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @25/30Hz |
|---|---|
| Data rate | 1.485 Gb/s |
| Input Connector | 1 x BNC [HD-SDI] 3G 75 Ω inter-locked socket |
| Output Connector | 2 x BNC [HD-SDI] 3G 75 Ω inter-locked socket |
| Power supply | 12VDC |
| Power consumption | 3 W max. |
| Operation temperature | 0~50°C / 32~122°F |
| Relative humidity | 20%~80% |
The EHA-RPT supports high-definition HD-SDI digital video at 720p60, 1080i60 and 1080p30 formats at all frame rates.
The EHA-RPT supports HD-SDI video signals at a data rate of up to 1.485 Gb/s.
The device uses 1 x BNC [HD-SDI] 3G 75 Ω inter-locked socket for input and 2 x BNC [HD-SDI] 3G 75 Ω inter-locked socket for output.
