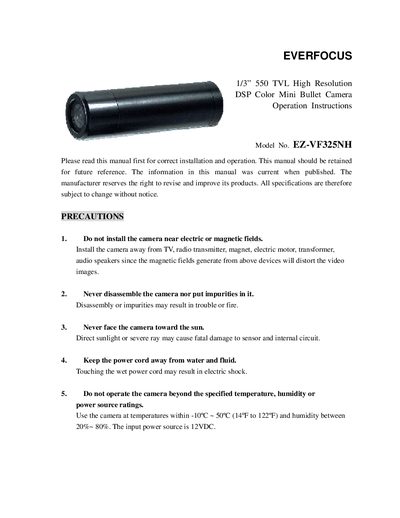

This document is a user manual for EVERFOCUS 1/3” 550 TVL High Resolution DSP Color Mini Bullet Camera
This manual provides operation instructions for the EverFocus EZ-VF325NH 1/3" 550 TVL High Resolution DSP Color Mini Bullet Camera. It includes important precautions regarding installation environments, power safety, and environmental limits to ensure correct usage and prevent damage.
The document details the package contents, technical specifications such as video format and sensor type, and provides step-by-step installation procedures for mounting on walls or ceilings. It also covers connecting power and video cables, troubleshooting common issues like no power or horizontal picture output, and lists major parts with their functions.
| Image Sensor | 1/3" Sony ICX638 Super HAD CCD |
|---|---|
| Horizontal Resolution | 550 TVL |
| Power Source | 12VDC + 10% |
| Operating Temperature | -10°C ~ 50°C |
| Dimensions | 66 (L) x 19 (W) x 19 (H) mm |
| Power Consumption | 90mA max |
The camera should be used at temperatures between -10ºC and 50ºC with humidity between 20% and 80%.
The black wire with a white stripe is positive, and the solid black wire is negative.
Horizontal picture output may occur depending on whether the camera is installed on a wall or ceiling, requiring rotation of the module.
