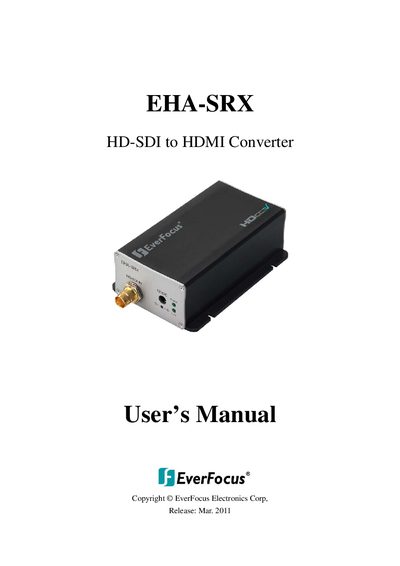

EverFocus EHA-SRX HD-SDI to HDMI Converter User's Manual

This manual provides instructions for installing and operating the EHA-SRX HD-SDI to HDMI Converter.

Brand: EverFocus
Category: Monitoring Equipment
Document type: User Manual
Language: English
Pages: 8
File format: PDF
File size: 231 KB
Published: 09 July, 2012
Updated: 30 September, 2023
MD5 checksum: 8B256DACDF354A5D9E5B760F46D2FB4F
PDF: EverFocus EHA-SRX HD-SDI to HDMI Converter User's Manual PDF

About this manual

The EverFocus EHA-SRX is a device that accepts HD-CCTV digital video signals from HD-SDI compliant cameras and converts them for display on HDMI inputs of HD TVs or monitors. It supports data rates up to 1.485Gb/s and resolutions including 1080p/30Hz over coaxial cable distances exceeding 100 meters using integrated equalizer technology.

What's inside

Introduction
Features
Specifications
Package Contents
Front Panel
Rear Panel
Cable Requirements

Specifications

Video Bandwidth	1.485Gbps
Video Support	720p/60, 1080i/60, 1080p/30
Input Connector	1x BNC [HD-SDI]
Output Connector	1x HDMI Type A, 1x BNC [HD-SDI]
Power Supply	12VDC
Operation Temperature	0~50°C / 32~122°F
Relative Humidity	20%~80%

Frequently asked questions

What video formats does the EHA-SRX support?

It accepts HD-SDI digital video at 720p/60, 1080i/60 and 1080p/30 formats.

What is the maximum data rate supported?

The converter processes HD-SDI standards at a data rate of 1.485Gb/s.

What is the maximum recommended cable length?

The device can receive video over coaxial cable at distances over 100 meters.
