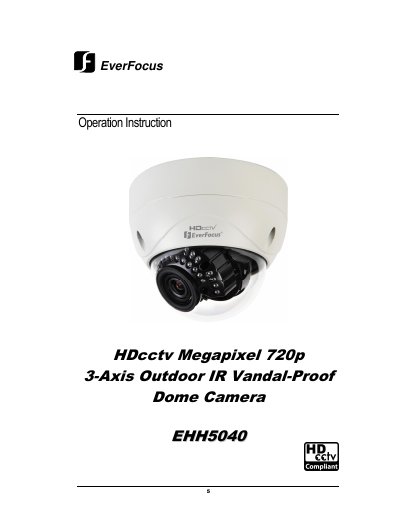

This is an operation instruction manual that provides installation and operation instructions for the HDcctv Megapixel 720p 3-Axis Outdoor IR Vandal-Proof Dome Camera.
The EverFocus EHH5040 is an HDcctv megapixel dome camera featuring a Sony 1.3 megapixel progressive scan sensor for 720p resolution. It includes True Day/Night capability with an automatic ICR module and offers extended IR range up to 30m (~100 ft.). The device supports 3-Axis positioning and operates on dual voltage power sources of 12VDC or 24VAC within a temperature range of -10°C to 50°C.
| Sensor Type | 1/3" Sony Megapixel Color Progressive CMOS Sensor |
|---|---|
| Resolution | 1280x720 |
| Video Mode | 720p25, 720p30, 720p50, 720p60 |
| Lens Type | Vari-focal lens, Auto Iris, &3~9mm |
| IR Range | Up to 30m (~100 ft) |
| Power Sources | 24VAC: 10W max. (~420mA); 12VDC: 800mA max. |
| Operating Temperature | -10°C~50°C (14°F ~122°F) |
The EHH5040 can capture images at up to 30m (~100 ft.) in low or no light environments.
The camera can capture images at up to 30 meters, which is approximately 100 feet.
The camera is suitable for operation at temperatures between -10°C and 50°C (14°F to 122°F).
The device accepts a 12VDC or 24VAC input power source.
