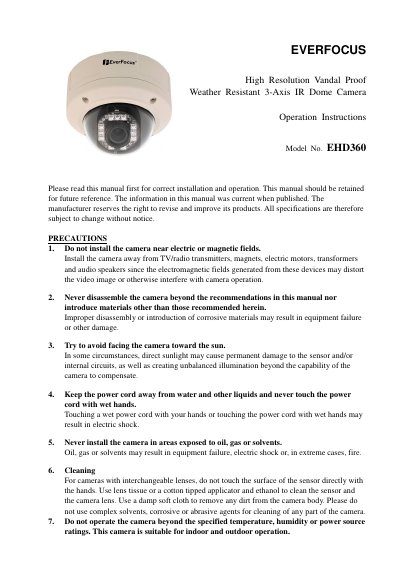

This document provides operation instructions for the EVERFOCUS High Resolution Vandal Proof Weather Resistant 3-Axis IR Dome Camera, including installation and usage. The document includes precautions such as avoiding installation near electric or magnetic fields and direct sunlight. It also emphasizes not to disassemble the camera beyond the recommendations in the manual and to avoid touching the power cord with wet hands.
This document provides operation instructions for the EverFocus EHD360, a high resolution 540 TVL 3-axis IR dome camera designed for security surveillance. It features a Sony 1/3" Super HAD CCD sensor, true day/night operation with 25m IR range, and an IP66 weather-resistant housing suitable for indoor and outdoor use.
| Sensor | 1/3" SONY Super HAD CCD Sensor |
|---|---|
| Horizontal Resolution | 540 TVL |
| IR Distance | 25m (~80ft.) |
| Weather Resistance | IP66 |
| Power Source | 12VDC |
| Operating Temperature | -10°C to +50°C |
| Dimensions | 142mm x 115.5mm |
The camera has a 25m (~80ft.) range high efficiency IR LEDs for night surveillance.
The camera requires a 12VDC power source with proper polarity.
