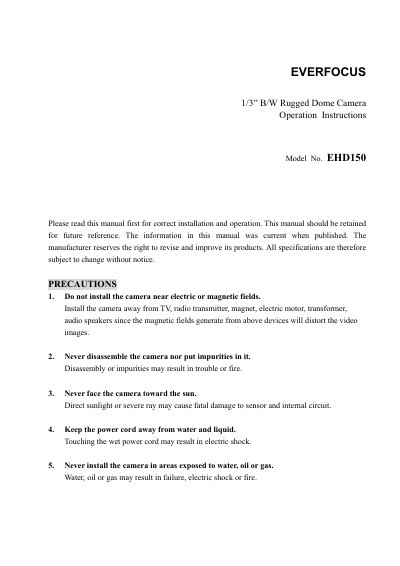

This manual introduces the correct installation and operation of EVERFOCUS 1/3” B/W Rugged Dome Camera.
This manual provides operation instructions for the EverFocus EHD150 1/3" B/W Rugged Dome Camera. The device is designed as a high-profile crime-prone application solution with built-in vandal resistance and an integrated heater for low-temperature environments.
The document covers installation procedures, including removing the housing cover and mounting the base to walls or ceilings. It details wire connections for power (12VDC/24VAC), video output, and alarm signals. Additionally, it explains how to adjust viewing angles and configure DIP switches for features such as Line-Lock synchronization, Automatic Gain Control, Back Light Compensation, Flickerless Function, and Electronic Shutter.
| Pickup Device | 1/3" SONY interline transfer CCD |
|---|---|
| Horizontal Resolution | 560 TV lines |
| Sensitivity | 0.06 lux / F=1.6 |
| S/N Ratio | Over 48dB (AGC off) |
| Operating Temperature | -46℃ ~ 50℃ |
| Power Source | 12VDC+/-10%, 24VAC+/-10% |
| Weight | 1.7kg |
The camera should be operated at temperatures between -46°C and 50°C.
Yes, the camera supports automatic switching between DC12V and AC24V power supplies.
When Line-Lock is enabled, the camera's vertical synchronization is driven by the AC signal in the power lines.
