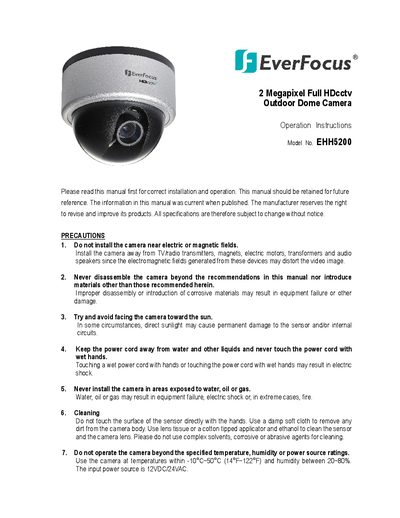

This manual contains the operating instructions for the 2 Megapixel Full HDcctv Outdoor Dome Camera. It covers installation and operation. Please read it carefully.
The EverFocus EHH5200 is a 2-megapixel full HD outdoor dome camera featuring true day/night capability with an automatic ICR module. It supports 1080p and 720p resolutions over coaxial cable and includes a 3.3-12mm varifocal auto iris lens for flexible coverage in demanding surveillance environments. The device is housed in an IP66 vandal-resistant casing suitable for outdoor use.
| Sensor | 1/2.7" 2 megapixel CMOS sensor |
|---|---|
| Resolution | 1920x1080 or 1280x720 field select |
| Lens Type | Megapixel Varifocal lens, Auto Iris, f=3.3~12mm, F=1.4 |
| Power Source | 12VDC/24VAC |
| Operating Temperature | -10°C~50°C |
| Weatherproof Rating | IP66 rated |
| Dimensions | 123 mm (O.D.) x 107.8 mm (H) |
The camera requires a power source of 12VDC or 24VAC with dual voltage auto polarity detection.
It is recommended to avoid facing the camera toward the sun, as direct sunlight may cause permanent damage to the sensor and internal circuits.
