Describes the use of EVERFOCUS 1/3” 560 TVL Pure Vision Lens Integrated Color Camera

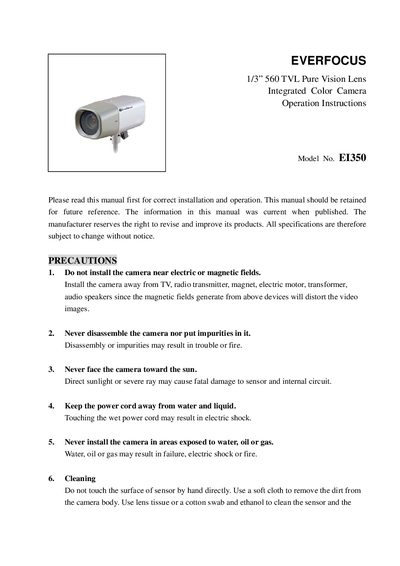

This manual provides operation instructions for the EverFocus EI350 Integrated Color Camera, which features a 1/3" SONY Super HAD CCD and a built-in vari-focal lens. The document outlines precautions for installation, such as avoiding magnetic fields and direct sunlight, and details cleaning procedures for the sensor and lens.
| Pickup Device | 1/3" SONY Super HAD CCD |
|---|---|
| Horizontal Resolution | 560 TVL |
| Sensitivity | 0.5Lux/F=1.2 |
| Power Source | 12VDC/24VAC |
| Operating Temperature | 0°C ~ 50°C |
| Dimensions | 66mm(W) x 59mm(H) x 146mm(D) |
The camera should be used at temperatures between 0°C and 50°C with humidity between 20% and 80%.
Remove the lens cover cap and adjust the focus and diaphragm of the lens to obtain the best picture after the image appears on the monitor.
When Line-Lock is on, the camera's vertical synchronization is driven by the AC signal in the power lines; when off, it synchronizes to the internal time base.
